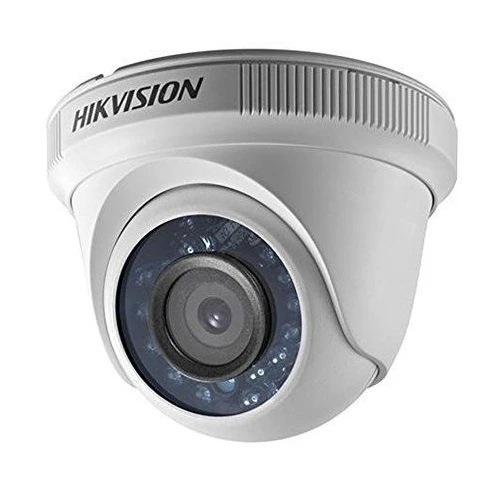

Product Code: 102343
Model: Hikvision DS-2CE56D0T-IRPF
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
2 MP Turret Camera
HD Output: up to 1080p
Smart IR: up to 20m distance
| General | ||
| Casing | Plastic | |
| Dimensions | Φ 89.9 mm × 70.1 mm | |
| Weight | 250 g | |
| Pan/Tilt/Rotation | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° | |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation) | |
| Power Supply | 12 VDC±15% | |
| Power Consumption | Max. 4 W | |
| Camera | ||
| Image Sensor | 2MP CMOS image sensor | |
| Electronic Shutter Speed | 1/25 (1/30) s to 1/50,000 s | |
| Minimum Illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR | |
| IR Distance | 20 m IR distance | |
| Lens | ||
| Lens Type | 3.6 mm, 2.8 mm, 6 mm fixed lens | |
| Mount Type | M12 | |
| Focal Length | 103° (2.8 mm), 82.2° (3.6 mm), 54° (6 mm) | |
| Video | ||
| Resolution | 1920 ×1080 | |
| Frame Rate | PAL: 1080p@25fps NTSC: 1080p@30fps |
|
| Video Output | Switchable TVI/AHD/CVI/CVBS | |
| Day/Night | IR cut filter | |
| BLC Mode | Yes | |
| Interface | ||
| Video Interface | 1 HD analog output | |
| Warranty | ||
| Warranty | 1 Year | |
The Hikvision DS-2CE56D0T-IRPF Dome Camera has 2MP Camera that sits in the turret position. It uses the Smart IR technology that allows it to see up to 20 meter distance. It also has 4 signal choice to choose from which are TVI, AHD, CVI, and CVBS. The cctv camera uses plastic material for its housing purpose and weighs in at approximately 250 grams. The camera uses the CMOS image sensor that allows it to have a resolution of 1920 by 1080 pixel. It uses a shutter time of 1/25 (1/30) second to 1/50,000 second. You will be able to get the PAL and NTSC signals from this camera so its up to you to choose the right one for you.
